Fatz Geronimo (Mijjin)
| Source metadata | |
|---|---|
| |
| Type | Animatronics |
| Dates | 1993 – 2019-01 |
| Tags | Creative Engineering, Fatz Geronimo (Mijjin), Fatz Geronimo, Mijjins, New Rock-afire Explosion, New Rock Afire Explosion Stage, Billy Bob's Toyland Adventure Show |
| Contributors | GallaRM, sudo-trans-pony, The Nefarious Pizza Perpetrator, TutorialTimeYt |
The Fatz Geronimo Mijjin was an animatronic produced by Creative Engineering for the New Rock-afire Explosion show in 1993 [1] He is the successor to the Fatz Geronimo (Early Mijjin) built the year prior for Creative Engineering 's show The Mijjins
History
The Fatz Geronimo Mijjin would start development and be finnished in 1993 [2] The bot is an improved version of the Fatz Geronimo (Early Mijjin) built the year prior,with the major diffrences being the bot having a standard Mijjin mech and various cosmetic diffrences,mainly in the tuxedo.
The first 2 New Rock-afire Explosion shows built known as the "beta" shows had multiple minor cosmetic and scenic differences from later shows.The only major diffrence on Fatz being the color of the buttons on his Tuxedo.Instead of the typical orange buttons,the first show,initially used as the proggraming stage but then shipped to Pleasure Island had black buttons.The second show,used on Creative Engineering 's programing stage and built right after the first show was shipped out had white buttons. [3]
The bot would continue to be installed at multiple Family Entertainment Centers and theme parks throughout the 90's with the last 2 installed publicly at the 2 Odyssey fun world locations being removed in January of 2019,and are now owned by private collectors. [4]
Design

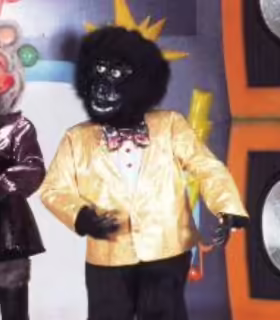

This bot is a standard Mijjin mech with brown eye pieces.The bot is a smaller Mijjin style version of the Fatz Geronimo (Animatronic) from the Rock-afire Explosion sporting the classic Gold tuxedo.The bowtie is made with a Sparkly Rainbow fabric with Black dots. The same fabric was used for Mitzi's Dress.
Outfit variants
Toyland
The bot wore a four button double breasted jacket with no collar made out of fabric featuring a pattern of Multicolored Cats.Under the jacket there's white under shit with a collar,under the collar is a short green tie.On top of his head sits a green french beret. [5]
Sports Plus
The bot wore a red four button double breasted jacket with no collar,with golden edges,golden buttons and blue edges near the neck area.Under the jacket there's white under shit with a collar.On top of his head sits a golden french beret. [6]
Mampato
The bot wore a short sleve shirt made out of red and white gingham patterned fabric.Over which went a white tank top with Mampato's logo printed on.He was also given a pair of shorts,with a rainbow grid design on a black base.On top of his head sits a red and white trucker cap [7]
Mechanical Structure
The Mijjins are mostly made up of a casted resin/plastic parts,with a few square aluminium bars,steal rods,steal universal joints,and varios nuts,bolts and washers of various sizes.The head of the character also incluedes 2 custom eyes and a pair of Rock-afire Explosion eylids connected togheter from the back.On top of the mech goes over multiple vacuum formed transparent plastic shells that give the character shape.Then on top of those go the leather guards that protect the cosmetics from getting caught in the mech trough the gaps in the shells.The bot is mounted onto a circular wooden base with smiley face-esc cutouts on the top.The "eyes" are where the character's feet go while the mouth is a trapdoor which reveals the character's valves,on the bottom of the door is also put achart with the character's movements and valve numbers [8]
The character like almost every other Creative Engineering bot runs on pneumatic cylinders produced by the companies Fabco-Air Inc and custom Creative Engineering.inc branded cylinders.These cylinders are than actuated with Mac valves stored in the character's circular base.The eye movements are controlled with servos,the brand of these servos is unknown.
Movements
The bot has 26 movements,20 pneumatic,6 servo controlled [9]
| Movement | Valve Number | Bit | Drawer |
|---|---|---|---|
| Mouth | 1 | 41 | Top |
| Lip | 2 | 42 | Top |
| Head Up | 3 | 43 | Top |
| Head turn | 4 | 44 | Top |
| Head tilt left | 5 | 45 | Top |
| Right wrist | 6 | 46 | Top |
| Right elbow | 7 | 47 | Top |
| Right arm twist | 8 | 48 | Top |
| Right arm raise | 9 | 49 | Top |
| Right shoulder | 10 | 50 | Top |
| Left wrist | 11 | 51 | Top |
| Left elbow | 12 | 52 | Top |
| Left arm twist | 13 | 53 | Top |
| Left arm raise | 14 | 54 | Top |
| Left shoulder | 15 | 55 | Top |
| Head tilt right | 16 | 56 | Top |
| Body turn right | 17 | 57 | Top |
| Body tilt left | 18 | 58 | Top |
| Body tilt right | 19 | 59 | Top |
| Knee bend | 20 | 60 | Top |
| Servo Movements | Bit | Drawer |
|---|---|---|
| Lids Open | 93 | Top |
| Eyes Left | 94 | Top |
| Eyes Right | 95 | Top |
| Eyes Up | 96 | Top |
| Eyes Down | 97 | Top |
| Lids Close | 98 | Top |
